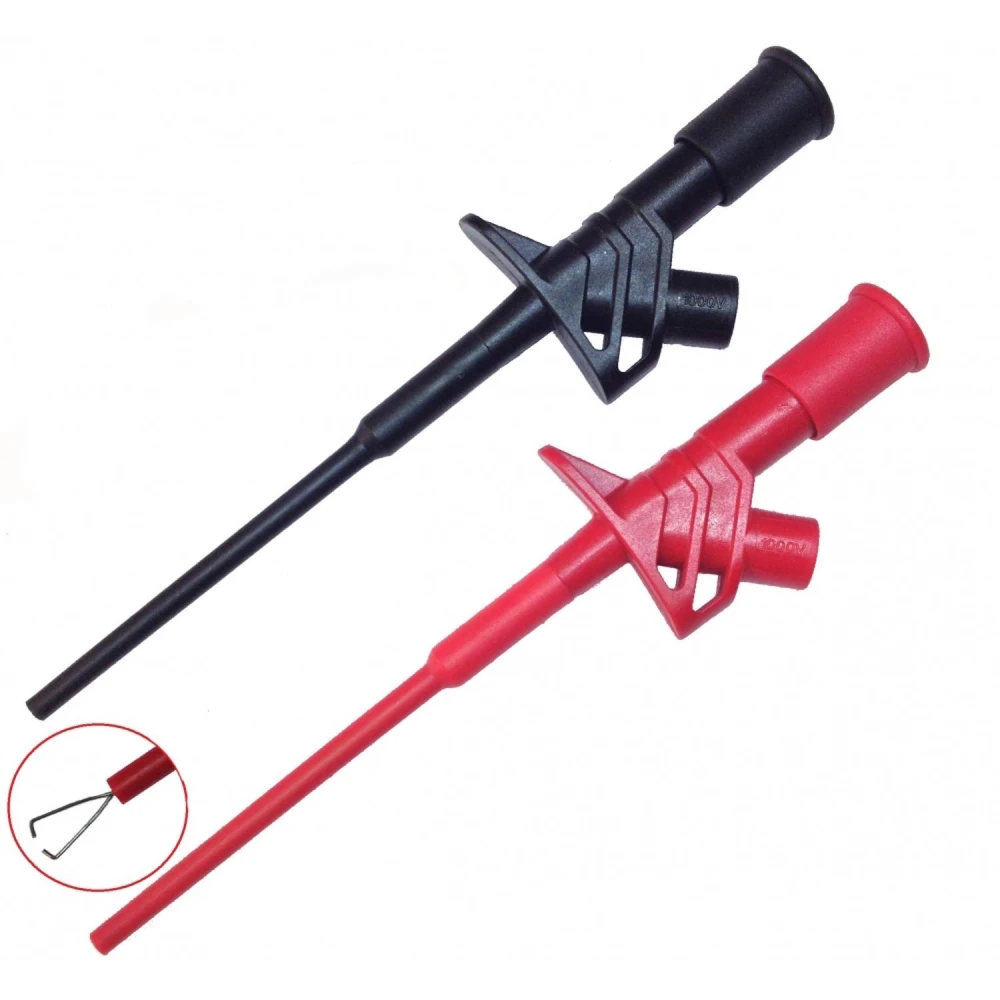

TC4169 Pinces isolées à crochet de serrage CATIII avec connexion banane Amass

Aquests clips ofereixen aïllament de fins a 1000V en categoria CAT III, cosa que els fa aptes per a aplicacions de mesura en instal·lacions elèctriques fixes com ara quadres i distribució d'energia en entorns industrials o residencials que no exposin a transitoris extrems. No se'n recomana l'ús en mesures directes sobre línies d'alta tensió aèries (CAT IV).

Cada clip mesura aproximadament 55 mm de llarg, 12 mm d'ample i 10 mm d'alt. El pes individual és proper als 18 g. El cos està fabricat en plàstic aïllant amb molla i garra d'acer inoxidable, amb terminal femella per a banana de 4 mm.

Es garanteix un ús segur fins a 10 A en condicions normals i un rang de temperatura entre -10 °C i 40 °C. L'ús continu prop del límit superior de corrent o a temperatures elevades pot reduir la vida útil de l'aïllant i de la molla.

La molla d'acer sol oferir un rendiment fiable en l'ús regular, però es pot fatigar si se sotmet a esforços mecànics prolongats o es corroeix. Actualment, aquests clips no disposen de recanvis oficials individuals; si falla el mecanisme, cal substituir el clip complet.

These clips offer insulation up to 1000V in CAT III, making them suitable for measurement applications in fixed electrical installations such as panels and power distribution in industrial or residential environments that are not exposed to extreme transients. They are not recommended for direct measurements on overhead high-voltage lines (CAT IV).

Each clip measures approximately 55 mm long, 12 mm wide and 10 mm high. The individual weight is around 18 g. The body is made from insulating plastic with a spring and stainless steel jaw, with a 4 mm female banana socket.

Safe use is guaranteed up to 10 A under normal conditions and a temperature range between -10 °C and 40 °C. Continuous use near the upper current limit or at high temperatures may reduce the lifespan of the insulation and spring.

The steel spring usually provides reliable performance in regular use, but it can fatigue if subjected to prolonged mechanical stress or corrosion. At present, these clips do not have official individual spare parts; if the mechanism fails, the entire clip must be replaced.

These clips offer insulation of up to 1000V in CAT III, making them suitable for measurement applications in fixed electrical installations such as panels and power distribution in industrial or residential environments that are not exposed to extreme transients. They are not recommended for direct measurements on overhead high-voltage lines (CAT IV).

Each clip measures approximately 55 mm long, 12 mm wide and 10 mm high. The individual weight is around 18 g. The body is made from insulating plastic with a spring and stainless steel jaw, with a 4 mm female banana socket.
